Tolerance size value

Detailed Description

group a3d_markuptolerancesizevalue

The tolerances sizes values contain the information to define a tolerance value. for example the depth of a hole. For this we have:

  • the value
  • the type of dimension
  • the main value (defines the display and the tolerance of the value)
  • the dual value (defines the display and the tolerance of the dual value)
  • the string of characters separating the value from the previous value.

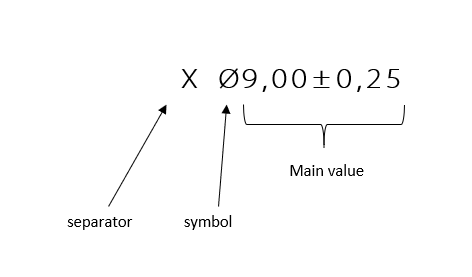

  • The symbol in front of the value. ../../_images/pmi_markup_tolerance_size_value.png
Version
12.0

Function Documentation

A3DStatus A3DMDToleranceSizeValueGet(const A3DMDToleranceSizeValue *pToleranceSizeValue, A3DMDToleranceSizeValueData *pData)

Populates the A3DMDToleranceSizeValueData structure.

Version
12.0

Return values:
  • A3D_INITIALIZE_NOT_CALLED –
  • A3D_INVALID_DATA_STRUCT_SIZE –
  • A3D_INVALID_DATA_STRUCT_NULL –
  • A3D_INVALID_ENTITY_NULL –
  • A3D_INVALID_ENTITY_TYPE –
  • A3D_SUCCESS –
Returns:

A3D_SUCCESS on success, or an error code on failure
