A3d_drawing_filledarea

Types

A3DEDrawingFilledAreaMode

Fields

kA3DDrawingFiledAreaModeOR
kA3DDrawingFiledAreaModeAND
kA3DDrawingFiledAreaModeXOR

Detailed Description

group a3d_drawing_filledarea

Type Documentation

enum A3DEDrawingFilledAreaMode

Enumerations for drawing filled area mode for use in the A3DDrawingFilledAreaData structure.

Version
5.0

In case of intersecting, or self-intersecting boundaries, A3DEDrawingFilledAreaMode is used to determine the fill area.

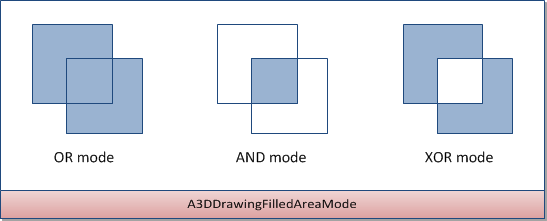

For example, in case of two intersecting square boundaries, three different fill areas can be obtained like in the next picture. ../../_images/drawing_fillmode.png

Values:

enumerator kA3DDrawingFiledAreaModeOR

Use OR operator.

enumerator kA3DDrawingFiledAreaModeAND

Use AND operator.

enumerator kA3DDrawingFiledAreaModeXOR

Use XOR operator.
