Geometrical dimensioning tolerance
Types
A3DMarkupGDTData |
Functions
A3DStatus |
A3DMDFCFRowDatumCreate() |
A3DStatus |
A3DMDFCFDrawingRowCreate() |
A3DStatus |
A3DMDFeatureControlFrameCreate() |
A3DStatus |
A3DMarkupGDTCreate() |
A3DStatus |
A3DMDFCValueCreate() |
A3DStatus |
A3DMDFCTolerancePerUnitCreate() |
A3DStatus |
A3DMDFCProjectedZoneCreate() |
A3DStatus |
A3DMDFCFToleranceValueCreate() |
Detailed Description
-
group
a3d_markupgdt
A markup GDT is composed of appended texts and an array of tolerances. Tolerances that can be of two types :
- features control frame tolerance (ref A3DMDFeatureControlFrameData).

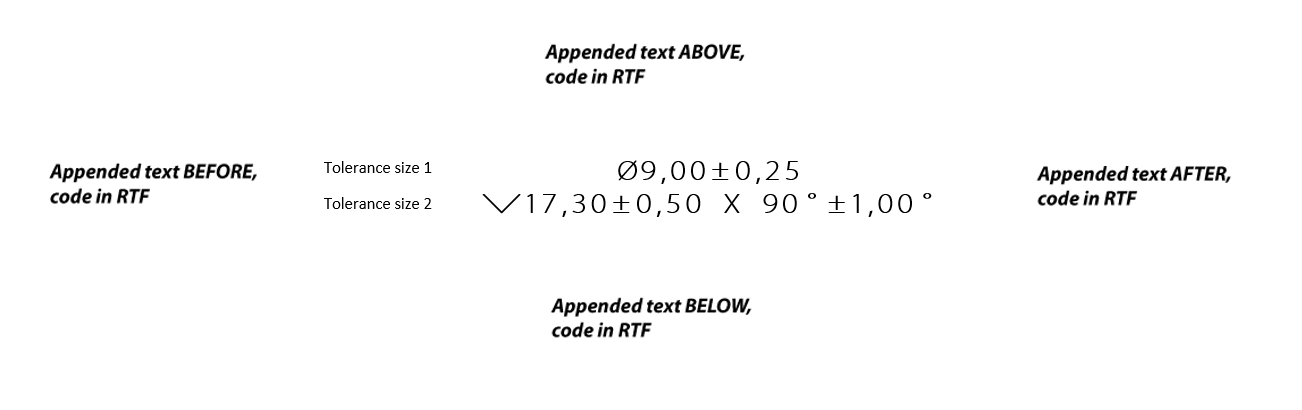

- Tolerances Sizes (ref A3DMDToleranceSizeData). which allow to define all the dimension of an element. For example for a hole we can have a tolerance size that will contain the value of the diameter, the value of the depth and the angle defining the V shape at the bottom of the hole.
- Version
- 4.0
- features control frame tolerance (ref A3DMDFeatureControlFrameData).
