Web Components Introduction

General Information

HOOPS Communicator includes a customizable user interface that you can use in your application. The framework is based on Web Components and is currently in a beta state. Web Components are a suite of technologies that allow developers to create custom HTML elements with encapsulated functionality, which enhance modularity and reusability in web development. Each component encapsulates a piece of functionality based on HOOPS Communicator.

Three key innovations are introduced: a new demo app, a comprehensive library of Web Components, and a UI-kit with the most common elements.

Web Components offer a modular and reusable approach to building web interfaces, enhancing both development efficiency and the user experience. This aims to satisfy users discovering our technology with ready-to-use modules, as well as web developers who wish to slightly modify the interface or fully control every detail and integrate it into their existing projects.

By adopting these modern standards, we ensure that our user interface remains flexible, scalable, and easier to maintain, ultimately providing a more robust and user-friendly experience for all stakeholders.

For more information on Web Components, please refer to the Mozilla documentation here.

Our Web Components reference page can be found here.

Introduction

Demo App

The user interface based on Web Components is demonstrated in our Web Viewer demo app, providing a practical example of how the new components can be utilized. The Web Viewer is built using React but can be easily modified to accept various frameworks. It reproduces the features of the previous UI with additional features such as a layout, a top menu with new interactivity, new dropdown menus, custom buttons, and icons.

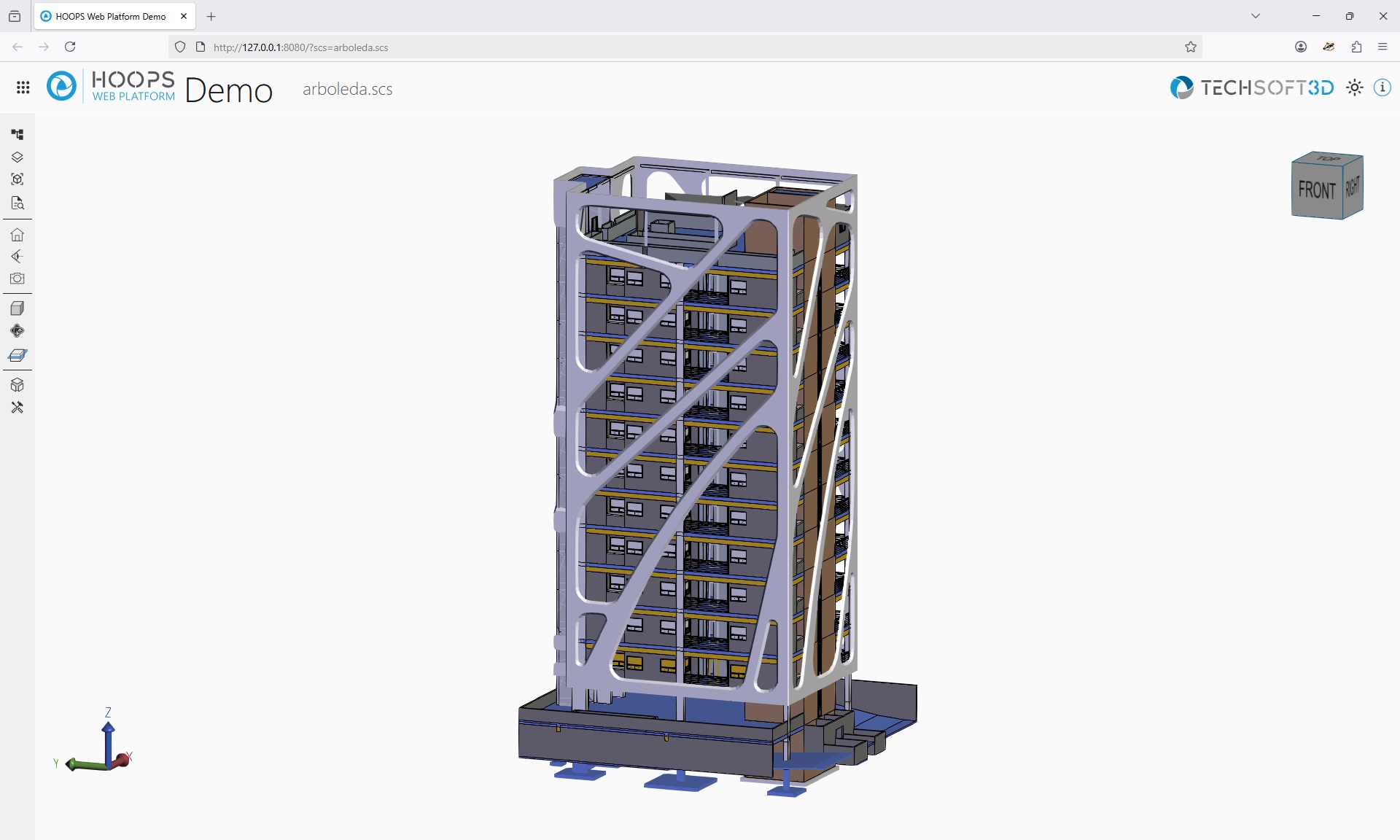

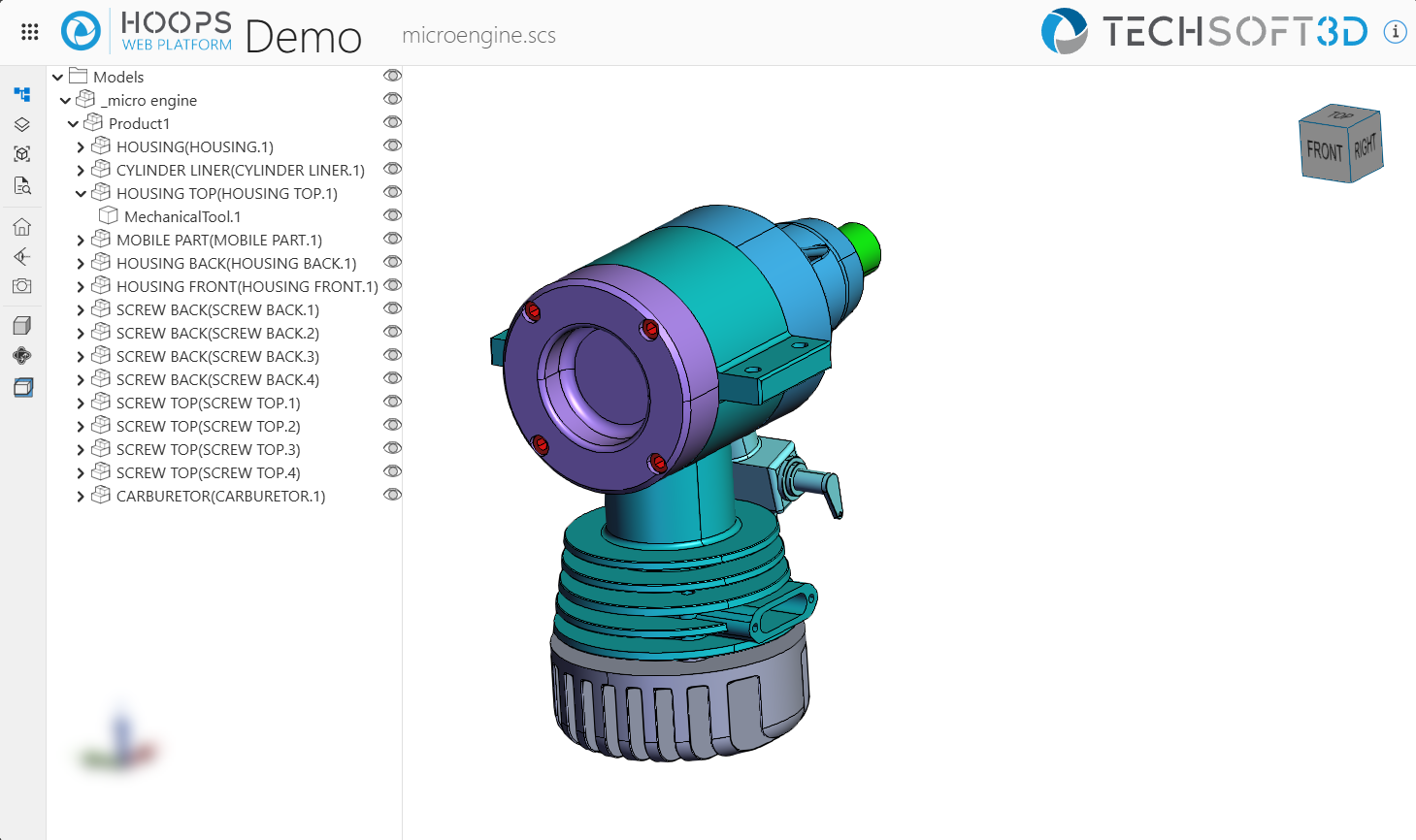

Web Viewer with example model:

../../../_images/web-viewer.jpg

Requirements:

The Demo app is using import maps. Import maps are supported in the following browser versions and above:

Browser Minimum supported version
Chrome 89
Edge 89
Firefox 108
Opera 76

Each of the components listed below is available as an HTML element. More information can be found in our API reference.

Viewer Components and Utilities:

  • <hoops-web-viewer>: Encapsulated HoopsWebViewer object within an HTML tag. It provides a seamless way to integrate the Viewer into your web application.
  • <hoops-model-tree>: Displays the assembly tree structure. Can be bound to the Viewer for selection events and visibility management, enhancing interaction with the model hierarchy.
  • <hoops-layer-tree>: Displays the layers from the assembly tree with associated nodes. Can be bound to the Viewer for selection events and visibility management, allowing for detailed layer control.
  • <hoops-view-tree>: Displays the views from the assembly tree with associated nodes. Can be bound to the Viewer for selection events and visibility management, facilitating view management.
  • <hoops-webviewer-context-manager>: A state manager for shared behavior between components. It is necessary for managing the state of toolbar buttons and other shared functionalities.
  • <hoops-cad-configuration-list>: Displays the CAD Configuration list. Can be bound to the Viewer for selection events and visibility management, enhancing interaction with the model configurations.
  • <hoops-context-menu>: Provides a customizable context menu that can be triggered on right-click within the viewer. It supports actions like isolate, hide, and show properties.
  • <hoops-ifc-relationship>: Displays IFC-specific relationships between elements, such as spatial or property set associations. Useful for navigating and understanding BIM data structures.
  • <hoops-types-tree>: Displays a categorized list of types present in the model. Can be bound to the Viewer for filtering, selection, and visibility control based on object types.
  • <hoops-tools-panel>: Hosts measurement tools, redline markup, and selection modes for model interaction.
  • <hoops-settings-panel>: Manages viewer settings across three areas — Graphics (rendering), Controls (navigation, selection), and Interface (UI preferences).
  • <hoops-toolbar-camera-operator>: A standalone dropdown to enable different camera operators.
  • <hoops-toolbar-camera>: A standalone dropdown to control the camera view (projection and builtin views).
  • <hoops-toolbar-drawmode>: A standalone dropdown to change the draw mode of the viewer.
  • <hoops-toolbar-explode>: A standalone dropdown with a slider to control the explode factor.
  • <hoops-toolbar-home>: A simple button that will reset the viewer to its initial state on click.
  • <hoops-toolbar-layers>: A simple button to toggle the layers view, logic needs to be implemented at application level.
  • <hoops-toolbar-model-tree>: A simple button to toggle the model tree, logic needs to be implemented at application level.
  • <hoops-toolbar-properties>: A simple button to show the properties panel, logic needs to be implemented at application level.
  • <hoops-toolbar-snapshot>: A simple button to trigger a snapshot, logic needs to be implemented at application level.
  • <hoops-toolbar-views>: A simple button to toggle the views panel, logic needs to be implemented at application level.

UI-kit

A modest yet essential UI-kit has been created to support the development of the Web Components library and the demo app. This kit includes the necessary elements to ensure a cohesive and functional user interface. It provides simple UI widgets, as well as a layout with menus and panels for containers, and a tree generic enough for all components to use. More information can be found in our API reference.

../../../_images/hoops-layout.png

The HOOPS layout

UI Components and Utilities:

  • <hoops-layout>: A comprehensive layout manager featuring top, down, right, and left panels, toolbars, a menu bar, a status bar, and a central widget. It provides a structured and organized interface for your application.
  • <hoops-button>: A customizable button component that includes text. It can be used to trigger actions or navigate within your application.
  • <hoops-dropdown>: A dropdown menu component that allows users to select from a list of options. It enhances the interactivity and usability of your application.
  • <hoops-icon>: A web component that stores and manages all the icons used in your application. It ensures consistency and easy access to icons.
  • <hoops-icon-button>: A button component that includes an icon and text. It combines visual appeal with functionality, making it easy for users to understand its purpose.
  • <hoops-list>: This class implements a list view as an HTML custom element. You can integrate it into your application using the hoops-list tag. It provides a structured way to display a list of items.
  • <hoops-node-properties>: A panel designed to display properties in a key-value format. It is useful for showing detailed information about selected items in your application.
  • <hoops-toolbar>: A basic vertical toolbar that allows you to stack buttons. It provides a convenient way to group and organize tools and actions.
  • <hoops-tree>: This class implements a tree view as an HTML custom element. You can integrate it into your application using the hoops-tree tag. It is ideal for displaying hierarchical data.
  • <hoops-separator>: A separator component used in toolbars to visually divide groups of buttons or tools. It helps in organizing the toolbar layout.
  • <hoops-accordion>: A custom web component that implements an accessible accordion using LitElement.
  • <hoops-switch>: An input widget that allows users to choose one of two values: on or off.

CSS variables

To ensure a consistent and customizable design, our library includes a set of CSS variables. These variables allow you to adjust the appearance of various components to match your application’s style or needs. The variables are defined in themes.css.

  • hoops-accent-foreground: Color used for accent elements in the foreground.
  • hoops-accent-foreground-active: Color for active accent elements in the foreground.
  • hoops-accent-foreground-disabled: Color for disabled accent elements in the foreground.
  • hoops-accent-foreground-hover: Color for accent elements in the foreground when hovered.
  • hoops-background: Base background color for the application.
  • hoops-body-font: Font used for the main body text.
  • hoops-foreground: Primary color for foreground elements.
  • hoops-icon-button-content-size-md: Size of the content within medium icon buttons.
  • hoops-icon-button-size-md: Overall size of medium icon buttons.
  • hoops-icon-button-content-size-sm: Size of the content within small icon buttons.
  • hoops-icon-button-size-sm: Overall size of small icon buttons.
  • hoops-svg-accent-color: Accent color used for SVG elements.
  • hoops-svg-fill-color: Fill color used for SVG elements.
  • hoops-icon-button-svg-stroke-color: Stroke color used for SVG elements within icon buttons.
  • hoops-icon-button-content-size-xl: Size of the content within extra-large icon buttons.
  • hoops-icon-button-size-xl: Overall size of extra-large icon buttons.
  • hoops-layout-panel-border: Border color for layout panels.
  • hoops-neutral-background: Neutral background color for the application.
  • hoops-neutral-background-20: Slightly darker neutral background color.
  • hoops-neutral-background-hover: Neutral background color when hovered.
  • hoops-neutral-foreground: Neutral color for foreground elements.
  • hoops-neutral-foreground-active: Neutral color for active foreground elements.
  • hoops-neutral-foreground-rest: Neutral color for resting foreground elements.
  • hoops-layout-panel-size: Size of layout panels.
  • hoops-layout-toolbar-size: Size of the toolbar in the layout.

React integration

While React is not required to use the Web Components, some React libraries are necessary if you are using that framework. To integrate our Web Components libraries into a React environment, HOOPS Communicator offers components that encapsulate UI Web Components. These components are available in the following dedicated libraries:

  • @hoops/web-viewer-components-react
  • @hoops/ui-kit-react

These libraries are essential for React integration and are utilized in our demo application.

Using Our Demo App

The demo app requires the following conditions:

Requirements:

  • node.js 18.20.7 or newer
  • Folder %APPDATA%/Roaming/npm/ must exist

To launch the demo, in the folder /quick_start/beta-demo-app/:

npx http-server -c-1 . -o "/?scs=arboleda.scs"

All required dependencies will be downloaded and installed and a web page will be launched in your default web browser.

Development environment

Important:

This is a beta program. Our final target is to provide npm packages through a registry, ready to be installed. The following recommendations are workarounds until the final state.

To get started developing, you’ll also need to do the following:

  • copy <INSTALL_DIR>/web_viewer/@hoops to your /dependencies folder from your application project
  • npm install ./dependencies/@hoops/web-viewer-components

In /web_viewer/@hoops/beta-demo-app-src, following commands to manage the project:

Important:

yarn usage is temporary, npm will be the final tool.

yarn install
yarn dev

Beta Program Timeline

Current Coverage

As of this release, the demo viewer covers 100% of planned features for the initial commercial availability of the new UI components. Changes based on beta testing and user feedback are currently under development with the intention of ending the beta program and moving to full commercial support in release 2025.7.0.

UI feature Status Release target
Settings panel DONE 2025.6.0
CAD configuration panel DONE 2025.5.0
Tool panel (measurements, markup) DONE 2025.6.0
IFC relationships panel DONE 2025.6.0
IFC types panel DONE 2025.6.0
API reference manual DONE 2025.5.0
BCF panel TO DO To be defined

We encourage you to get familiar with our new tools and share all feedback with us to improve the user experience with our product. Please go to the next section for more information on using the new UI.
