A3DMDDimensionExtremityData

Fields

`A3DBool`	`m_bShow`
`A3DDouble`	`m_dBlanking`
`A3DDouble`	`m_dOverrun`

Detailed Description

struct A3DMDDimensionExtremityData

Structure that describes extremities.

See also

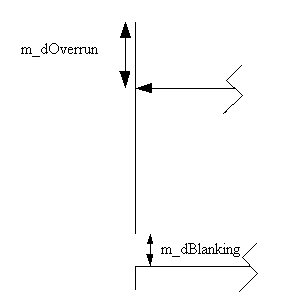

A3DMDDimensionExtentionLineData ../_images/pmi_markup_dimension_Extremity.png

Public Members

A3DBool m_bShow: Indicates if the dimension line is visible (TRUE) or not (FALSE).

A3DDouble m_dBlanking: Blanked part of the extension line (expressed in mm).

A3DDouble m_dOverrun: Overrunning part of the extension line (expressed in mm).
