Drawing row

Types

	A3DMDFCFRowDatumData
	A3DMDFCFDrawingRowData
	EA3DGDTType
	A3DMDGDTValueType
	EA3DMDGDTModifierType

Fields

	KEA3DGDTTypeNone
	KEA3DGDTTypeStraightness
	KEA3DGDTTypeFlatness
	KEA3DGDTTypeCircularity
	KEA3DGDTTypeCylindricity
	KEA3DGDTTypeLineProfile
	KEA3DGDTTypeSurfaceProfile
	KEA3DGDTTypeAngularity
	KEA3DGDTTypePerpendicularity
	KEA3DGDTTypeParallelism
	KEA3DGDTTypePosition
	KEA3DGDTTypeConcentricity
	KEA3DGDTTypeSymmetry
	KEA3DGDTTypeCircularRunout
	KEA3DGDTTypeTotalRunout
	KEA3DGDTValueNone
	KEA3DGDTValueDiameter
	KEA3DGDTValueRadius
	KEA3DGDTValueSpherical
	KEA3DGDTModifierNone
	KEA3DGDTModifierMax
	KEA3DGDTModifierMin
	KEA3DGDTModifierProj
	KEA3DGDTModifierFree
	KEA3DGDTModifierRfs
	KEA3DGDTModifierTangent
	KEA3DGDTModifierST

Functions

A3DStatus	A3DMDFCFSemanticRowGet
A3DStatus	A3DMDFCFToleranceValueGet
A3DStatus	A3DMDFCFRowDatumGet
A3DStatus	A3DMDFCFDrawingRowGet

Detailed Description

group a3d_markupfcfrow

Version

4.0

Type Documentation

enum EA3DGDTType

Enumerations for row type.

Version

4.0

Values:

enumerator KEA3DGDTTypeNone

No Type.

enumerator KEA3DGDTTypeStraightness

Straightness.

enumerator KEA3DGDTTypeFlatness

Flatness.

enumerator KEA3DGDTTypeCircularity

Circularity.

enumerator KEA3DGDTTypeCylindricity

Cylindricity.

enumerator KEA3DGDTTypeLineProfile

Profile of a line.

enumerator KEA3DGDTTypeSurfaceProfile

Profile of a surface.

enumerator KEA3DGDTTypeAngularity

Angularity.

enumerator KEA3DGDTTypePerpendicularity

Perpendicularity.

enumerator KEA3DGDTTypeParallelism

Parallel.

enumerator KEA3DGDTTypePosition

Positional.

enumerator KEA3DGDTTypeConcentricity

Concentricity.

enumerator KEA3DGDTTypeSymmetry

Symmetric.

enumerator KEA3DGDTTypeCircularRunout

Circular run out.

enumerator KEA3DGDTTypeTotalRunout

Total run out.

enum A3DMDGDTValueType

Enumerations for modifier type.

Version

4.0

Values:

enumerator KEA3DGDTValueNone

No modifier defined.

enumerator KEA3DGDTValueDiameter

Diameter value type.

enumerator KEA3DGDTValueRadius

Radial value type.

enumerator KEA3DGDTValueSpherical

Spherical value type.

enum EA3DMDGDTModifierType

Enumerations for modifier type.

Version

4.0

Values:

enumerator KEA3DGDTModifierNone

No modifier defined.

enumerator KEA3DGDTModifierMax

Maximum material condition.

enumerator KEA3DGDTModifierMin

Least material condition.

enumerator KEA3DGDTModifierProj

Projected tolerance zone.

enumerator KEA3DGDTModifierFree

Free State.

enumerator KEA3DGDTModifierRfs

Regardless of feature size.

enumerator KEA3DGDTModifierTangent

Tangent plane.

enumerator KEA3DGDTModifierST

Statistical.

Function Documentation

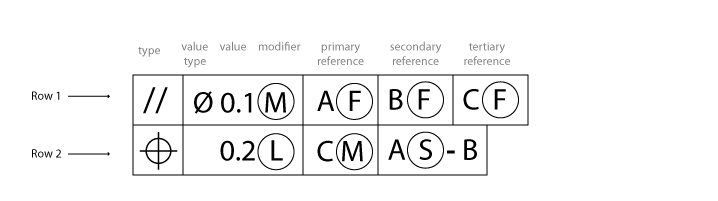

A3DStatus A3DMDFCFSemanticRowGet(const A3DMDFCFRow *pRow, A3DMDFCFDrawingRowData *pData)

Populates the A3DMDFCFDrawingRowData structure whatever the row type.

Note that if the drawing row is not defined with a tolerance value, the function returns A3D_MARKUP_SEMANTIC_TOL_VALUE_NOT_SET

See also

A3DMDFCFDrawingRowData

Version

5.2

Return values:

• A3D_INITIALIZE_NOT_CALLED –

• A3D_INVALID_DATA_STRUCT_SIZE –

• A3D_INVALID_DATA_STRUCT_NULL –

• A3D_INVALID_ENTITY_NULL –

• A3D_INVALID_ENTITY_TYPE –

• A3D_MARKUP_SEMANTIC_DEFINITION_NOT_SET –

• A3D_MARKUP_SEMANTIC_TOL_VALUE_NOT_SET –

• A3D_SUCCESS –

Returns:

A3D_SUCCESS on success, or an error code on failure

A3DStatus A3DMDFCFToleranceValueGet(const A3DMDFCFToleranceValue *pToleranceValue, A3DMDFCFToleranceValueData *pData)

Populates the A3DMDFCFToleranceValueData structure.

Version

5.2

Return values:

• A3D_INITIALIZE_NOT_CALLED –

• A3D_INVALID_DATA_STRUCT_SIZE –

• A3D_INVALID_DATA_STRUCT_NULL –

• A3D_INVALID_ENTITY_NULL –

• A3D_INVALID_ENTITY_TYPE –

• A3D_SUCCESS –

Returns:

A3D_SUCCESS on success, or an error code on failure

A3DStatus A3DMDFCFRowDatumGet(const A3DMDFCFRowDatum *pRowDatum, A3DMDFCFRowDatumData *pData)

Populates the A3DMDFCFRowDatumData structure.

Version

4.0

Return values:

• A3D_INITIALIZE_NOT_CALLED –

• A3D_INVALID_DATA_STRUCT_SIZE –

• A3D_INVALID_DATA_STRUCT_NULL –

• A3D_INVALID_ENTITY_NULL –

• A3D_INVALID_ENTITY_TYPE –

• A3D_SUCCESS –

Returns:

A3D_SUCCESS on success, or an error code on failure

A3DStatus A3DMDFCFDrawingRowGet(const A3DMDFCFDrawingRow *pDrawingRow, A3DMDFCFDrawingRowData *pData)

Populates the A3DMDFCFDrawingRowData structure.

Version

4.0

Return values:

• A3D_INITIALIZE_NOT_CALLED –

• A3D_INVALID_DATA_STRUCT_SIZE –

• A3D_INVALID_DATA_STRUCT_NULL –

• A3D_INVALID_ENTITY_NULL –

• A3D_INVALID_ENTITY_TYPE –

• A3D_SUCCESS –

Returns:

A3D_SUCCESS on success, or an error code on failure
